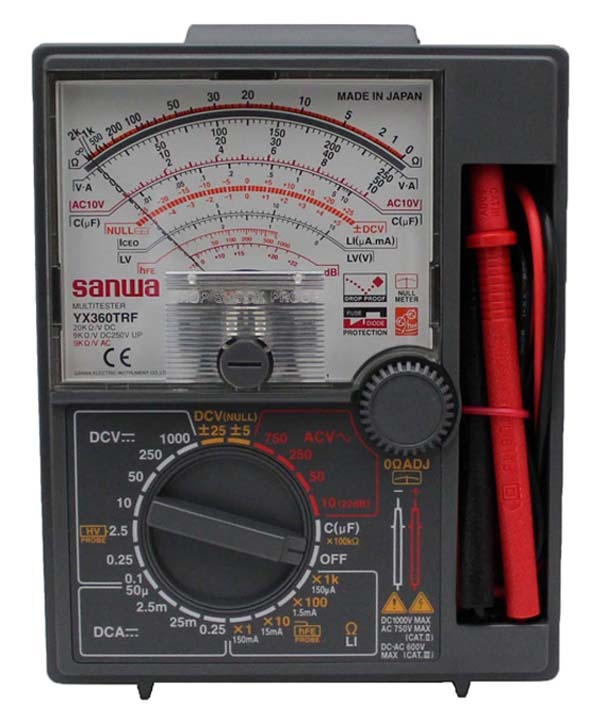

sanwa指針式三用電錶

防震型吊線式錶頭

• 直流電壓:

0.1/0.25/2.5/10/50/250V
1000VDC ±3%F.S(20KΩ/V)

•±DCV(NULL):

±5V/±25V ±5%

•交流電壓:

10/50/250/750VAC
±4% F.S (9KΩ/V)

•直流電流:

50u/2.5m/25m/0.25A DC
±3% F.S

•電 阻:

2K/20K/200K/2MΩ ±3%
/200MΩ ±5%全刻度

•dB:

-10dB～+22dB(AC10V檔)

•hFE:

0～1000 LI:0～150mA

•電容測試:

0～10uf

•SIZE:

159.5HX129WX41.5D/m
